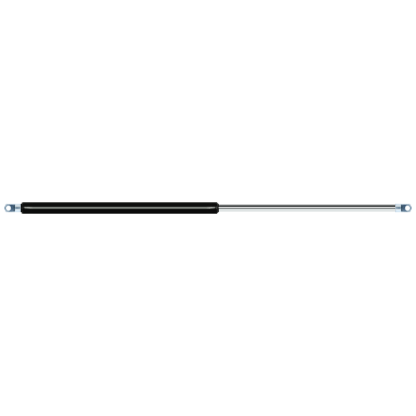

Replacement for Stabilus Lift-O-Mat 085758 1500N

$60.51




Replacement gas spring for the Stabilus Lift-O-Mat 085758 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.
  • This gas spring is also known as CA085758.
    Stabilus Lift-O-Mat 085758
    AU27


    The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod totals 14 mm. The stroke is 400 millimeter long. The total length of this replacement is exactly 902 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 848 mm. The force of this replacement gas spring is 1500 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
