Replacement for Stabilus Lift-O-Mat 097286 0600N

$41.29




Replacement gas spring for the Stabilus Lift-O-Mat 097286 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA097286.
Stabilus Lift-O-Mat 097286
WG20
elbow ball removal

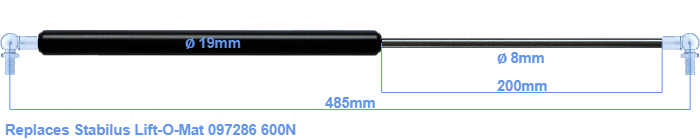

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement is 485 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions equal.
