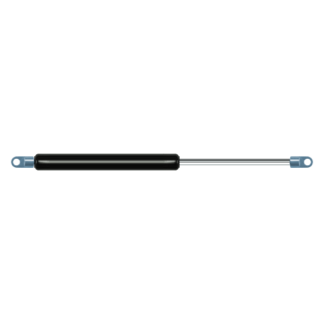

Replacement for Stabilus Lift-O-Mat 082503 0150N

$28.75




Replacement gas spring for the Stabilus Lift-O-Mat 082503 0150N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA082503.
Stabilus Lift-O-Mat 082503
AX16


The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 100 millimeter. In total, the length is 264 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. The force of this replacement is 150 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions nearly equal.
