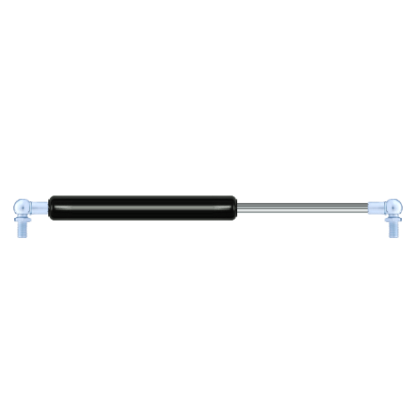

Replacement for Stabilus Lift-O-Mat 083399 0600N
$41.74
Replacement gas spring for the Stabilus Lift-O-Mat 083399 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA083399.
The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement is 285 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). This replacement gas spring has a force of 600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
