Replacement for Lesjöfors 9314 400N

$48.80




Replacement gas spring for the Lesjöfors 9314 400 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.

    Lesjöfors 9314
    AR19

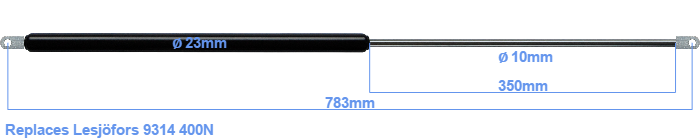

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The rod (the chrome part) is 350 mm long. The total length of this gas strut is 783 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 745 millimeter. The force of this replacement is 400 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
