Replacement for Lesjöfors 9289 1200N

$38.56




Replacement gas spring for the Lesjöfors 9289 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9289
    AR19

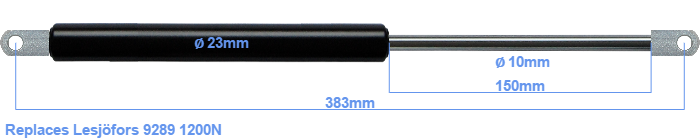

    The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement is exactly 383 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 345 millimeter. The force of this replacement gas spring is 1200 Newton. This is not an original gas spring produced by Lesjöfors, but it can replace a Lesjöfors gas spring. This a gas spring with the brand HAHN. The force (1200 N) and dimensions are almost identical to the original.
    Category:
    Replacement for Lesjöfors 9289 1200N
