Replacement for Lesjöfors 9300 350N

$43.06




Replacement gas spring for the Lesjöfors 9300 350 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9300
    AR19

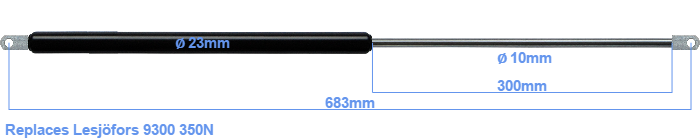

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 300 millimeter. The total length of this replacement is 683 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 350 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This a gas spring with the brand HAHN. The force (350 N) and dimensions are almost entirely identical to the original.
    Category:
    Replacement for Lesjöfors 9300 350N
