Replacement for Lesjöfors 9290 900N

$40.07




Replacement gas spring for the Lesjöfors 9290 900 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9290
    AR19

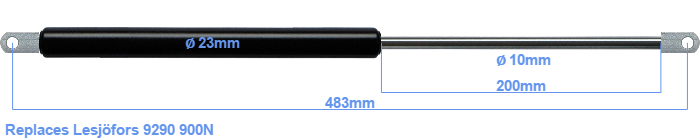

    The bore of the house of this replacement gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke is 200 millimeter long. The total length of this replacement gas spring is 483 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. This replacement gas spring (9290) has a force of 900 Newton (N). Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
    Category:
    Replacement for Lesjöfors 9290 900N
