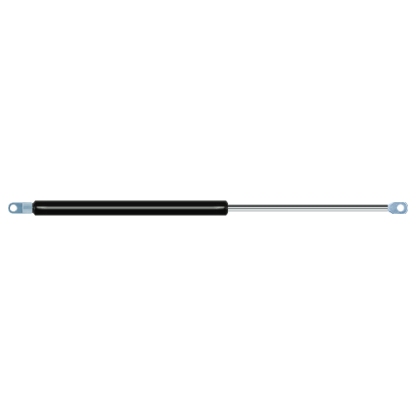

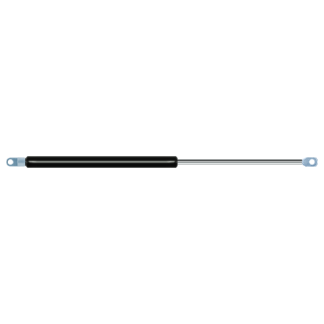

Replacement for Lesjöfors 9190 100N

$36.49




Replacement gas spring for the Lesjöfors 9190 100 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • Lesjöfors 9190
    AS24AR16_8


    The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke is 200 millimeter long. The total length of this replacement is exactly 485 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This gas spring (9190) has a force of 100 Newton. This gas spring can replace a Lesjöfors gas spring, but is not an orignal Lesjöfors one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are close to equal.
