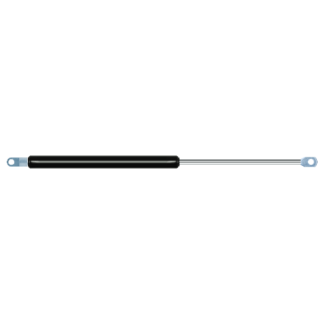

Replacement for Lesjöfors 9186 400N

$54.48




Replacement gas spring for the Lesjöfors 9186 400 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


    • View this gas spring in our configurator.

    Lesjöfors 9186
    AS24AR16_8

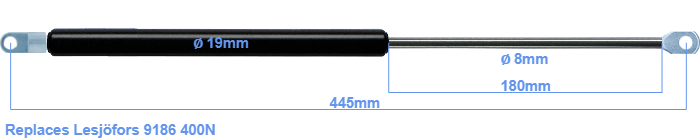

    This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this replacement is exactly 445 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This replacement gas spring has a force of 400 Newton. This is not an original gas spring produced by Lesjöfors, but it can replace a Lesjöfors gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
    Category:
    Replacement for Lesjöfors 9186 400N
