Replacement for Lesjöfors 9205 350N

$48.22




Replacement gas spring for the Lesjöfors 9205 350 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • Lesjöfors 9205
    AS24AR16_8

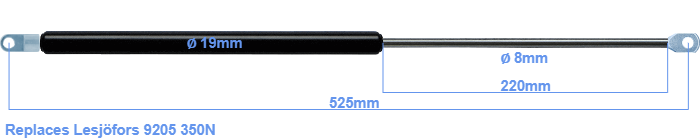

    The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 220 mm. The total length of this replacement is 525 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This replacement gas spring has a force of 350 Newton. Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
