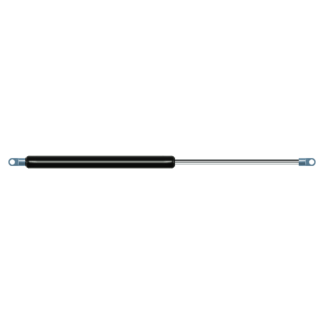

Replacement for Lesjöfors 9106 50N

$29.14




Replacement gas spring for the Lesjöfors 9106 50 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Lesjöfors 9106
AX16

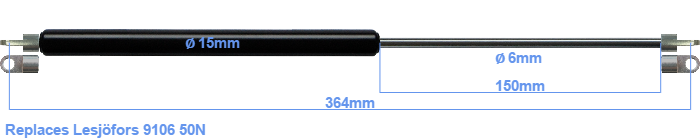

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this gas strut is 364 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 332 millimeter. The force of this replacement gas spring is 50 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
