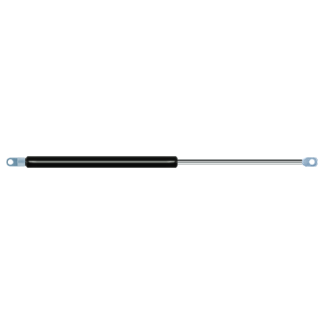

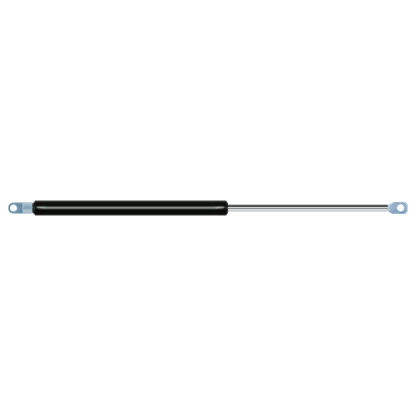

Replacement for Lesjöfors 9196 400N

$36.49




Replacement gas spring for the Lesjöfors 9196 400 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • Lesjöfors 9196
    AS24AR16_8


    The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke is 200 millimeter long. The total length of this gas strut is 485 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. The force of this replacement is 400 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are nearly equal.
