Replacement for Lesjöfors 9097 400N

$33.53




Replacement gas spring for the Lesjöfors 9097 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Lesjöfors 9097
AX16

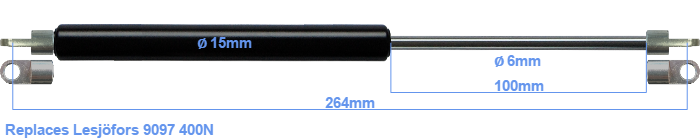

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The rod (the chrome part) is 100 mm long. The total length of this replacement gas spring is 264 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. This gas spring (9097) has a force of 400 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
