Replacement for Lesjöfors 9329 600N

$53.04




Replacement gas spring for the Lesjöfors 9329 600 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.

    Lesjöfors 9329
    AR19

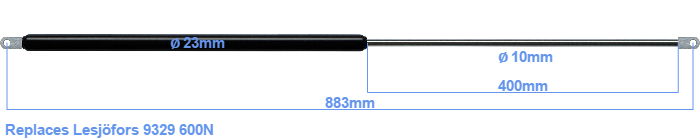

    The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod is 10 millimeter. The stroke of the gas spring is 400 millimeter. The total length of this gas strut is 883 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 845 mm. This replacement gas spring (9329) has a force of 600 Newton (N). This is not an original gas spring produced by Lesjöfors, but it can replace a Lesjöfors gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
