Replacement for Ferron 525 30-450N

$28.94




Replacement gas spring for the Ferron 525 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
Clear

AX16

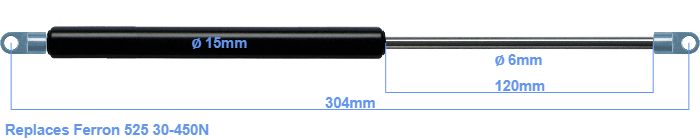

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this replacement gas spring is 304 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement gas spring is 30-450 Newton. This is not an original gas spring from Ferron, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions nearly equal.
