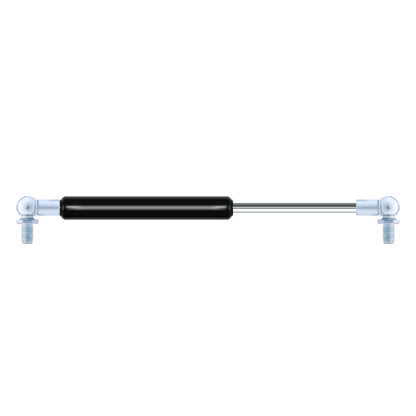

Replacement for Stobo 4100081- 50N

$31.35




Replacement gas spring for the Stobo 4100081- 50 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Stobo 4100081-
WX22
elbow ball removal

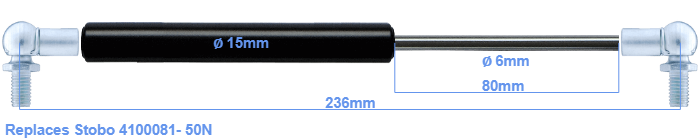

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 80 millimeter long. The total length of this replacement is 236 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. This replacement gas spring has a force of 50 Newton. This is not an original gas spring from Stobo, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
