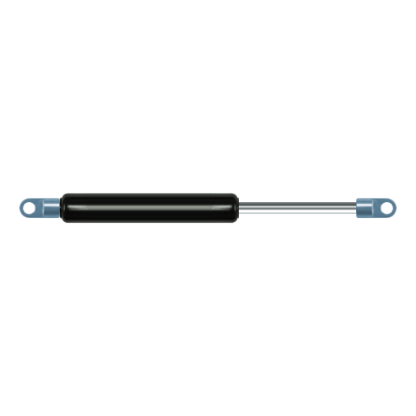

Replacement for Ferron 522 30-450N

$33.10



Replacement gas spring for the Ferron 522 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Ferron 522 30-450N quantity

Add to basket

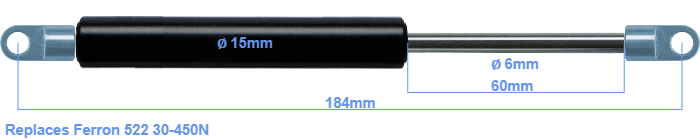

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is 184 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 152 mm. This replacement gas spring (522) has a force of 30-450 Newton (N). This is not an official Ferron gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
