Replacement for Lesjöfors 9304 700N

$43.06




Replacement gas spring for the Lesjöfors 9304 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9304
    AR19

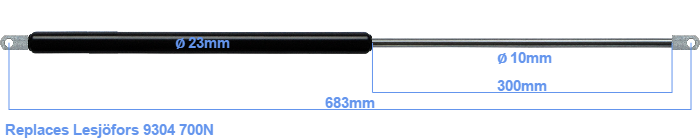

    The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 683 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring has a force of 700 Newton. This is not an original gas spring produced by Lesjöfors, but it can replace a Lesjöfors gas spring. This replacement gas spring is a HAHN gas spring. The force (700 N) and dimensions are almost identical to the original.
    Category:
    Replacement for Lesjöfors 9304 700N
