Replacement for Effegi Brevetti Lift-O-Mat 9281NZ 300N
$32.18

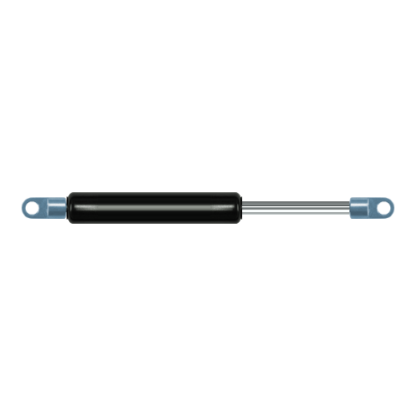

Replacement gas spring for the Effegi Brevetti Lift-O-Mat 9281NZ 300 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as 7339VT, 423992, 105878, 4775SX.

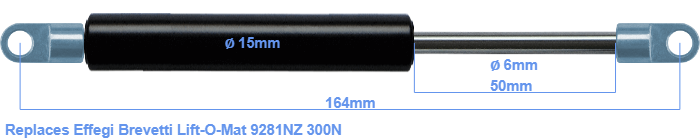

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 50 mm. The total length of this replacement is exactly 164 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 132 mm. The force of this replacement is 300 Newton. Attention: this is not an official Effegi Brevetti gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (300 N) and dimensions are nearly identical to the original.
