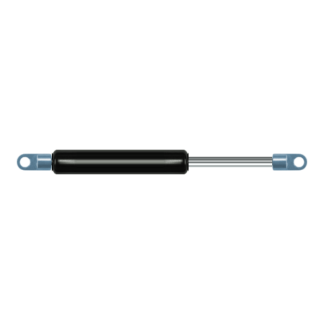

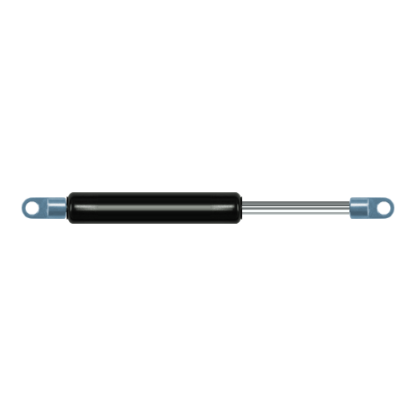

Replacement for Effegi Brevetti Lift-O-Mat 9278NX 200N



Replacement gas spring for the Effegi Brevetti Lift-O-Mat 9278NX 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 771276.
Effegi Brevetti Lift-O-Mat 9278NX

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The rod (the chrome part) is 50 mm long. The total length of this gas strut is 164 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 132 mm. The force of this replacement is 200 Newton. This is not an original gas spring from Effegi Brevetti, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
