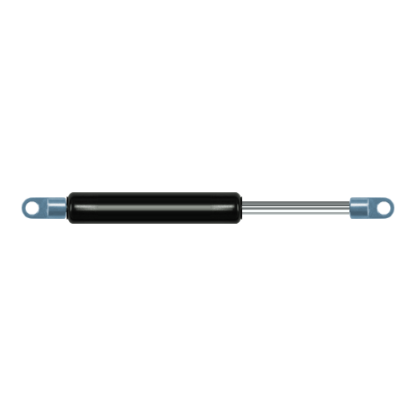

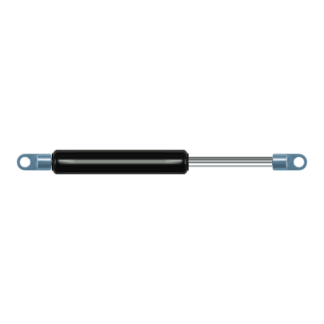

Replacement for Effegi Brevetti Lift-O-Mat 6011SE 350N

$27.58




Replacement gas spring for the Effegi Brevetti Lift-O-Mat 6011SE 350 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 768169, 9282NU.
Effegi Brevetti Lift-O-Mat 6011SE
AX16


The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 50 millimeter. The total length of this replacement is exactly 164 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 132 millimeter. The force of this replacement is 350 Newton. This gas spring can replace a Effegi Brevetti gas spring, but is not an orignal Effegi Brevetti one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are nearly equal.
