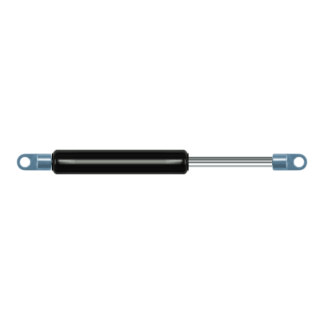

Replacement for Effegi Brevetti Lift-O-Mat 9279NS 250N

$27.58




Replacement gas spring for the Effegi Brevetti Lift-O-Mat 9279NS 250 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Effegi Brevetti Lift-O-Mat 9279NS
AX16


The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 50 mm. The total length of this replacement is 164 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 132 mm. This replacement gas spring (Lift-O-Mat 9279NS) has a force of 250 Newton (N). This is not an original gas spring from Effegi Brevetti, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
