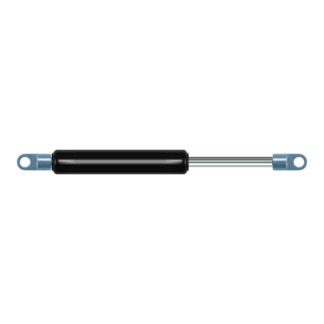

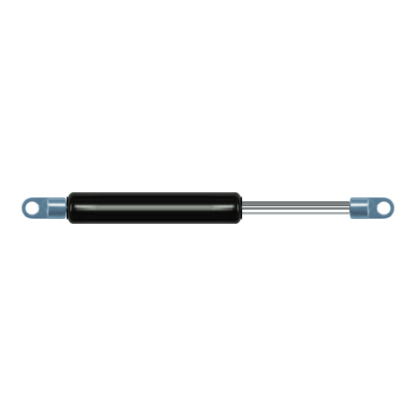

Replacement for Effegi Brevetti Lift-O-Mat 4775SX 400N



Replacement gas spring for the Effegi Brevetti Lift-O-Mat 4775SX 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 105878, 9286NA.
Effegi Brevetti Lift-O-Mat 4775SX

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod is 6 millimeter. The rod (the chrome part) is 50 mm long. In total, the length is 164 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 132 mm long (thread to thread). This gas spring (Lift-O-Mat 4775SX) has a force of 400 Newton. This is not an original gas spring from Effegi Brevetti, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (400 N) and dimensions are almost identical to the original.
