Replacement for Bansbach X3X3-42-200-483–0XX 80-1250N

$34.36




Replacement gas spring for the Bansbach X3X3-42-200-483--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 14mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    AR19

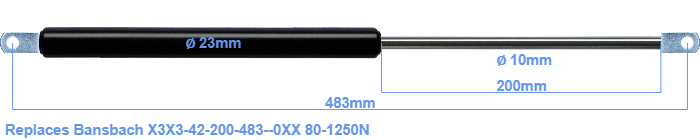

    The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The stroke of the gas spring is 200 millimeter. The total length of this gas strut is 483 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (X3X3-42-200-483--0XX) has a force of 80-1250 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are nearly equal.
