Replacement for Bansbach J2X3-42-300-683–0XX 80-1250N

$36.93




Replacement gas spring for the Bansbach J2X3-42-300-683--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach J2X3-42-300-683--0XX
    AR19

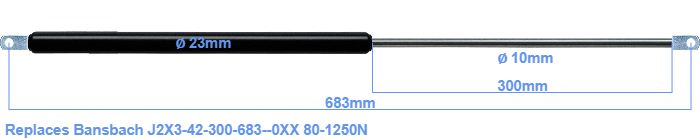

    The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod is 10 millimeter. The stroke of the gas spring is 300 millimeter. The total length of this gas strut is 683 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring (J2X3-42-300-683--0XX) has a force of 80-1250 Newton (N). This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost equal.
