Replacement for Bansbach L2M2-45-200-501–0XX 150-2500N



Replacement gas spring for the Bansbach L2M2-45-200-501--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Hahn.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.

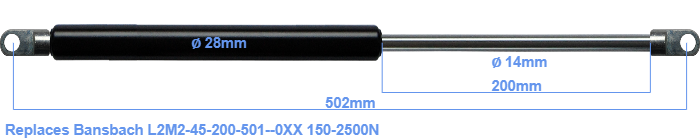

The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod is 14 millimeter. The rod (the chrome part) is 200 mm long. The total length of this replacement is 502 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 448 mm long (thread to thread). This gas spring (L2M2-45-200-501--0XX) has a force of 150-2500 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
