Replacement for Bansbach K2X3-42-300-683–0XX 80-1250N

$36.93




Replacement gas spring for the Bansbach K2X3-42-300-683--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach K2X3-42-300-683--0XX
    AR19

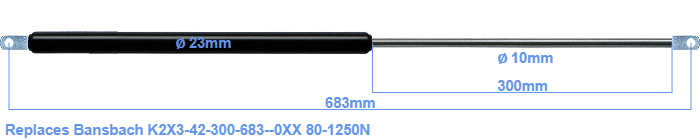

    The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod is 10 millimeter. The stroke is 300 millimeter long. In total, the length is 683 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. This replacement gas spring (K2X3-42-300-683--0XX) has a force of 80-1250 Newton (N). Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
