Replacement for Bansbach K2X3-42-200-483–0XX 80-1250N

$34.36




Replacement gas spring for the Bansbach K2X3-42-200-483--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach K2X3-42-200-483--0XX
    AR19

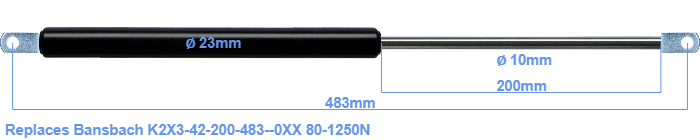

    The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The stroke of the gas spring is 200 millimeter. The total length of this replacement gas spring is 483 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 80-1250 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost entirely equal.
