Replacement for Bansbach A1J2-40-60-204–0XX 50-800N

$32.83



Replacement gas spring for the Bansbach A1J2-40-60-204--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Bansbach A1J2-40-60-204--0XX 50-800N quantity

Add to basket

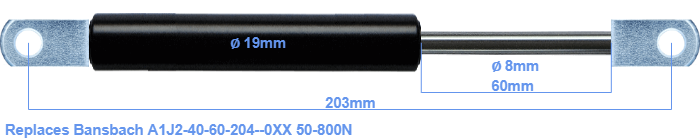

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 60 millimeter. The total length of this replacement is 203 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 165 mm. The force of this replacement is 50-800 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
