Replacement for Lesjöfors 9293 900N

$41.57




Replacement gas spring for the Lesjöfors 9293 900 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9293
    AR19

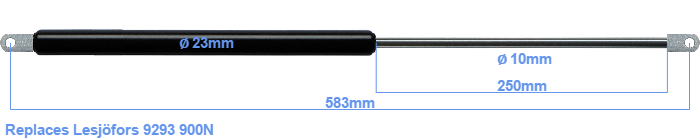

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement is 583 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement gas spring is 900 Newton. Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
    Category:
    Replacement for Lesjöfors 9293 900N
