Replacement for APSOvib 12.2174.4050 500N
$48.88
Replacement gas spring for the APSOvib 12.2174.4050 500 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2174.4050.

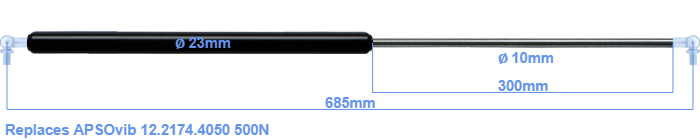

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 300 millimeter. The total length of this replacement is 685 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement gas spring is 500 Newton. This is not an official APSOvib gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
