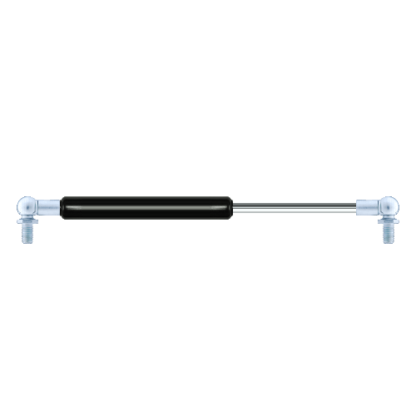

Replacement for APSOvib 12.2171.3030 300N

$36.56




Replacement gas spring for the APSOvib 12.2171.3030 300 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as AP12.2171.3030.
APSOvib 12.2171.3030
WX22
elbow ball removal

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this gas strut is 236 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). The force of this replacement gas spring is 300 Newton. Attention: this is not an official APSOvib gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
