Replacement for APSOvib 12.2171.4010 100N

$31.55




Replacement gas spring for the APSOvib 12.2171.4010 100 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as AP12.2171.4010.
APSOvib 12.2171.4010
WX22
elbow ball removal

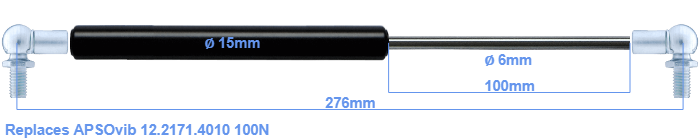

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The stroke of the gas spring is 100 millimeter. The total length of this replacement is 276 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. The force of this replacement gas spring is 100 Newton. This is not an official APSOvib gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
