Replacement for APSOvib 12.2166.3095 950N

$48.04




Replacement gas spring for the APSOvib 12.2166.3095 950 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.3095.
APSOvib 12.2166.3095
AU27

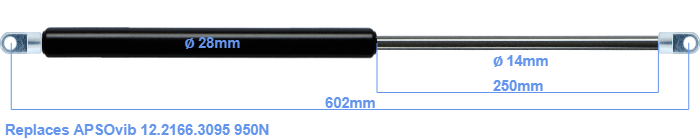

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement gas spring is 602 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 548 mm. This gas spring (12.2166.3095) has a force of 950 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
