Replacement for APSOvib 12.2166.1060 600N



Replacement gas spring for the APSOvib 12.2166.1060 600 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.1060.
APSOvib 12.2166.1060

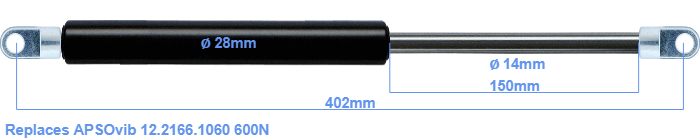

The diameter of the cylinder of this gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke is 150 millimeter long. The total length of this replacement is 402 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 348 millimeter. This gas spring (12.2166.1060) has a force of 600 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (600 N) and dimensions are close to identical to the original.
