Replacement for APSOvib 12.2162.9010 100N

$43.80

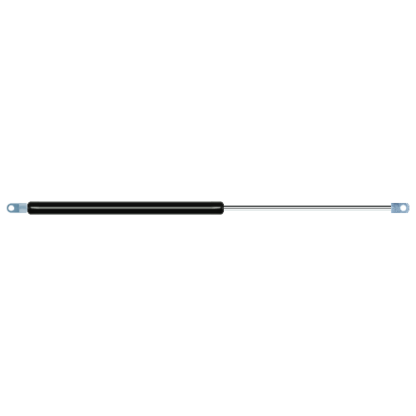

Replacement gas spring for the APSOvib 12.2162.9010 100 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.
This gas spring is also known as AP12.2162.9010.
APSOvib 12.2162.9010
AS24AR19


The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The rod (the chrome part) is 250 mm long. The total length of this gas strut is 588 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement gas spring is 100 Newton. This is not an official APSOvib gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
