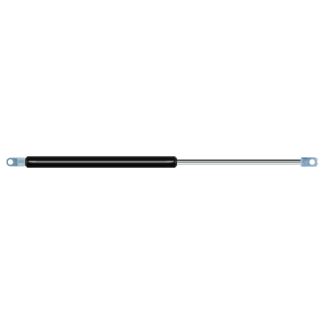

Replacement for APSOvib 12.2162.7065 650N
Replacement gas spring for the APSOvib 12.2162.7065 650 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as AP12.2162.7065.
The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement gas spring is 488 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. The force of this replacement is 650 Newton. Attention: this is not an official APSOvib gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
