Replacement for APSOvib 12.2162.3045 450N
$36.88
Replacement gas spring for the APSOvib 12.2162.3045 450 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2162.3045.

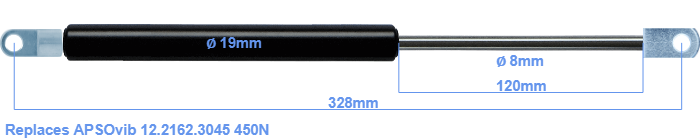

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke of the gas spring is 120 millimeter. In total, the length is 328 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 285 mm. This replacement gas spring (12.2162.3045) has a force of 450 Newton (N). This is not an original gas spring from APSOvib, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
