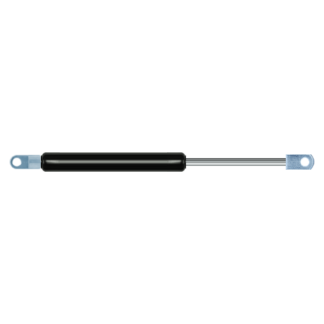

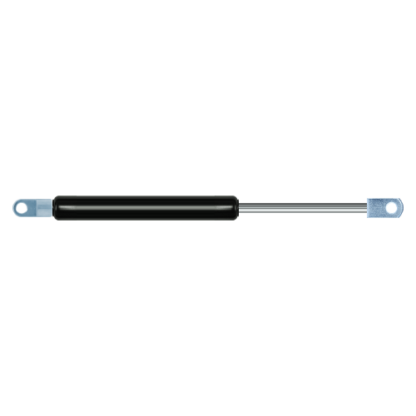

Replacement for APSOvib 12.2162.2050 500N
$36.03
Replacement gas spring for the APSOvib 12.2162.2050 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2162.2050.

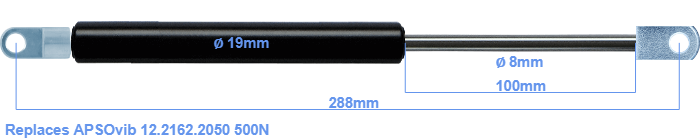

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement gas spring is 288 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. This gas spring (12.2162.2050) has a force of 500 Newton. This is not an official APSOvib gas spring, but a so called replacement. This is a HAHN gas spring. The force (500 N) and dimensions are close to identical to the original.
