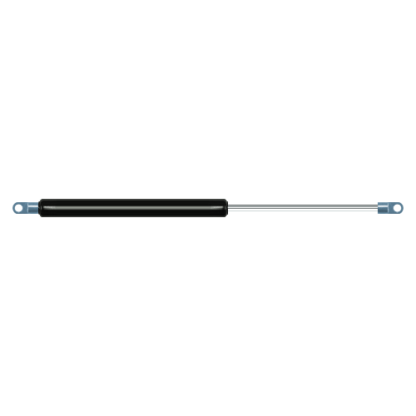

Replacement for APSOvib 12.2161.5015 150N

$28.94




Replacement gas spring for the APSOvib 12.2161.5015 150 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as AP12.2161.5015.
APSOvib 12.2161.5015
AX16


This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The stroke is 120 millimeter long. The total length of this replacement is exactly 304 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). This gas spring (12.2161.5015) has a force of 150 Newton. This is not an official APSOvib gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (150 N) and dimensions are nearly identical to the original.
