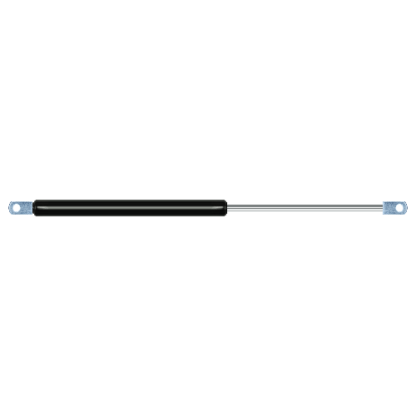

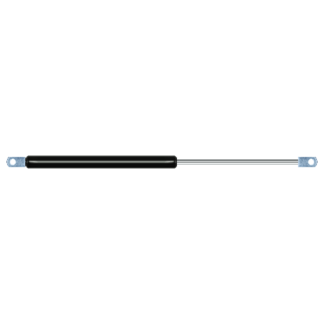

Replacement for Airax Rayflex 6858864103001 300N



Replacement gas spring for the Airax Rayflex 6858864103001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • This gas spring is also known as 588641 300N, 50006858864103001, 6858864103001.00.
    Airax Rayflex 6858864103001

    The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this gas strut is 443 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 405 mm. This replacement gas spring (6858864103001) has a force of 300 Newton (N). Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (300 N) and dimensions are almost identical to the original.
