Replacement for Airax Rayflex 6858860205501 550N

$40.97




Replacement gas spring for the Airax Rayflex 6858860205501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588602 550N, 50006858860205501, 685886025501.00, 6858860205501.00.
    Airax Rayflex 6858860205501
    AR19

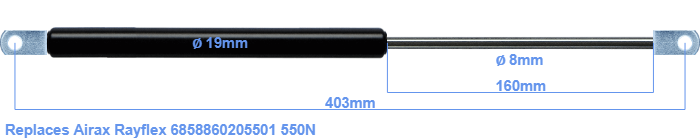

    This gas spring has a cylinder diameter of 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 160 mm. The total length of this gas strut is 403 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 365 mm. This replacement gas spring has a force of 550 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
    Category:
    Replacement for Airax Rayflex 6858860205501 550N
