Replacement for Airax Rayflex 6858853601001 100N

$54.26

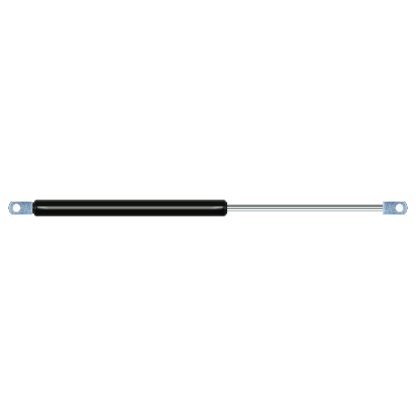

Replacement gas spring for the Airax Rayflex 6858853601001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853601001 100N quantity

Add to basket

This gas spring is also known as 588536 100N, 50006858853601001, 6858853601001.00.

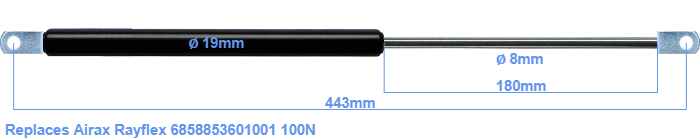

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 180 mm long. The total length of this replacement is exactly 443 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 405 mm. This replacement gas spring (6858853601001) has a force of 100 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (100 N) and dimensions are close to identical to the original.
