Replacement for Airax Rayflex 6858860203501 350N

$40.97



Replacement gas spring for the Airax Rayflex 6858860203501 350 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858860203501 350N quantity

Add to basket

This gas spring is also known as 588602 350N, 50006858860203501, 685886023501.00, 6858860203501.00.

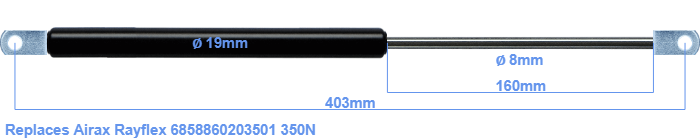

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 160 mm. In total, the length is 403 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 365 millimeter. This gas spring (6858860203501) has a force of 350 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (350 N) and dimensions are nearly identical to the original.
