Replacement for Airax Rayflex 6858853806001 600N

$56.03




Replacement gas spring for the Airax Rayflex 6858853806001 600 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588538 600N, 50006858853806001, 6858853806001.00.
    Airax Rayflex 6858853806001
    AR19

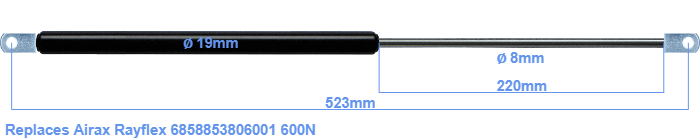

    The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke is 220 millimeter long. The total length of this replacement gas spring is 523 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 485 millimeter. The force of this replacement gas spring is 600 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
    Category:
    Replacement for Airax Rayflex 6858853806001 600N
