Replacement for Airax Rayflex 6858853805501 550N

$48.04




Replacement gas spring for the Airax Rayflex 6858853805501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • This gas spring is also known as 588538 550N, 50006858853805501, 6858853805501.00.
    Airax Rayflex 6858853805501
    AR19

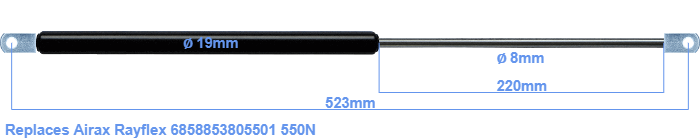

    The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke is 220 millimeter long. The total length of this replacement is 523 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. This gas spring (6858853805501) has a force of 550 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
