Replacement for Airax Rayflex 6858853807001 700N

$56.03




Replacement gas spring for the Airax Rayflex 6858853807001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588538 700N, 50006858853807001, 6858853807001.00.
    Airax Rayflex 6858853807001
    AR19

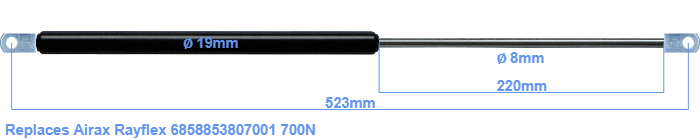

    This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 220 mm. In total, the length is 523 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. The force of this replacement is 700 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions close to equal.
