Replacement for Airax Rayflex 563502 30-450N

$33.10



Replacement gas spring for the Airax Rayflex 563502 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Airax Rayflex 563502 30-450N quantity

Add to basket

This gas spring is also known as 5000563502, 563502.00.

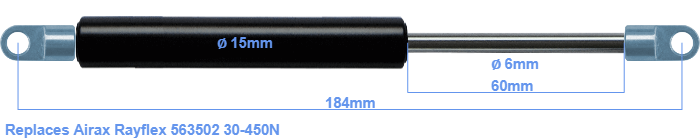

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod totals 6 mm. The stroke of the gas spring is 60 millimeter. The total length of this replacement gas spring is 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. This replacement gas spring has a force of 30-450 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
