Replacement for Airax Rayflex 6858862507001 700N

$37.47




Replacement gas spring for the Airax Rayflex 6858862507001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • This gas spring is also known as 588625 700N, 50006858862507001, 6858862507001.00.
    Airax Rayflex 6858862507001
    AR19

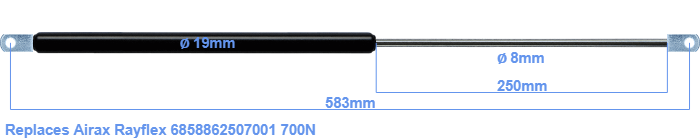

    The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 250 mm. In total, the length is 583 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement gas spring is 700 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
